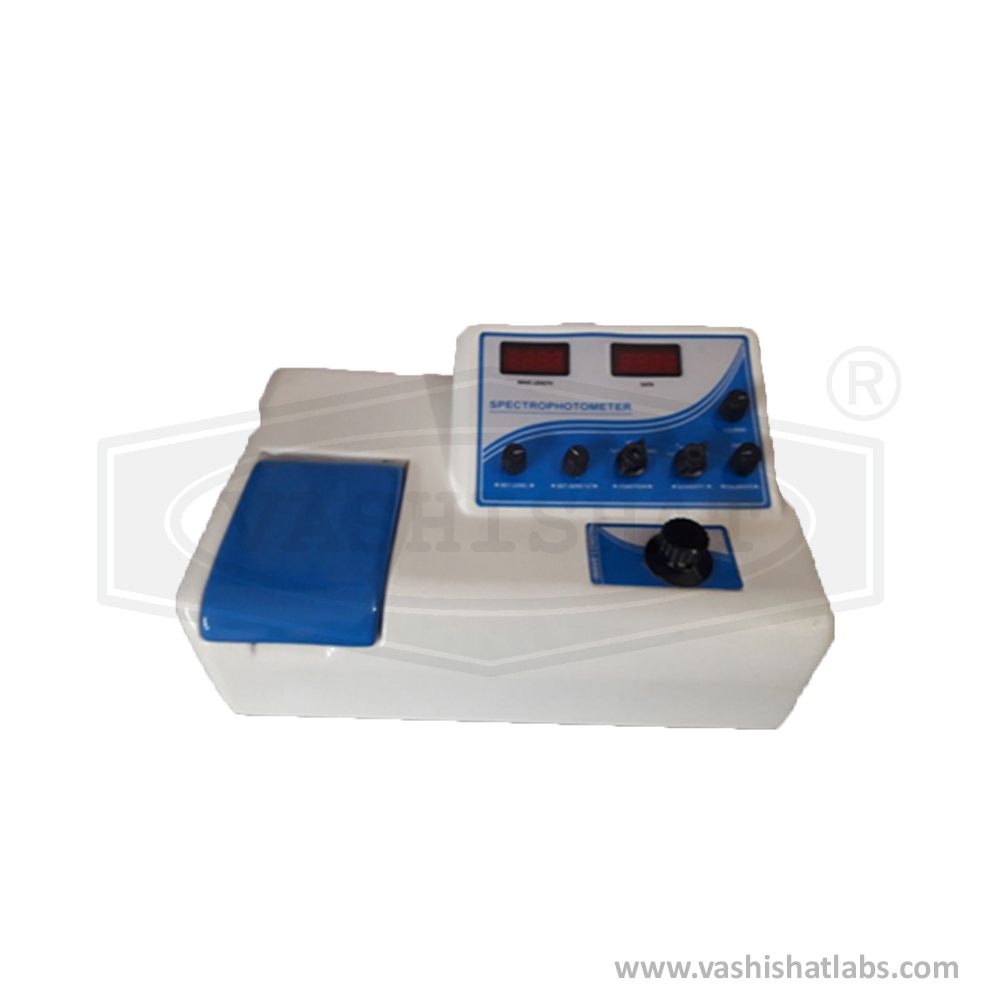

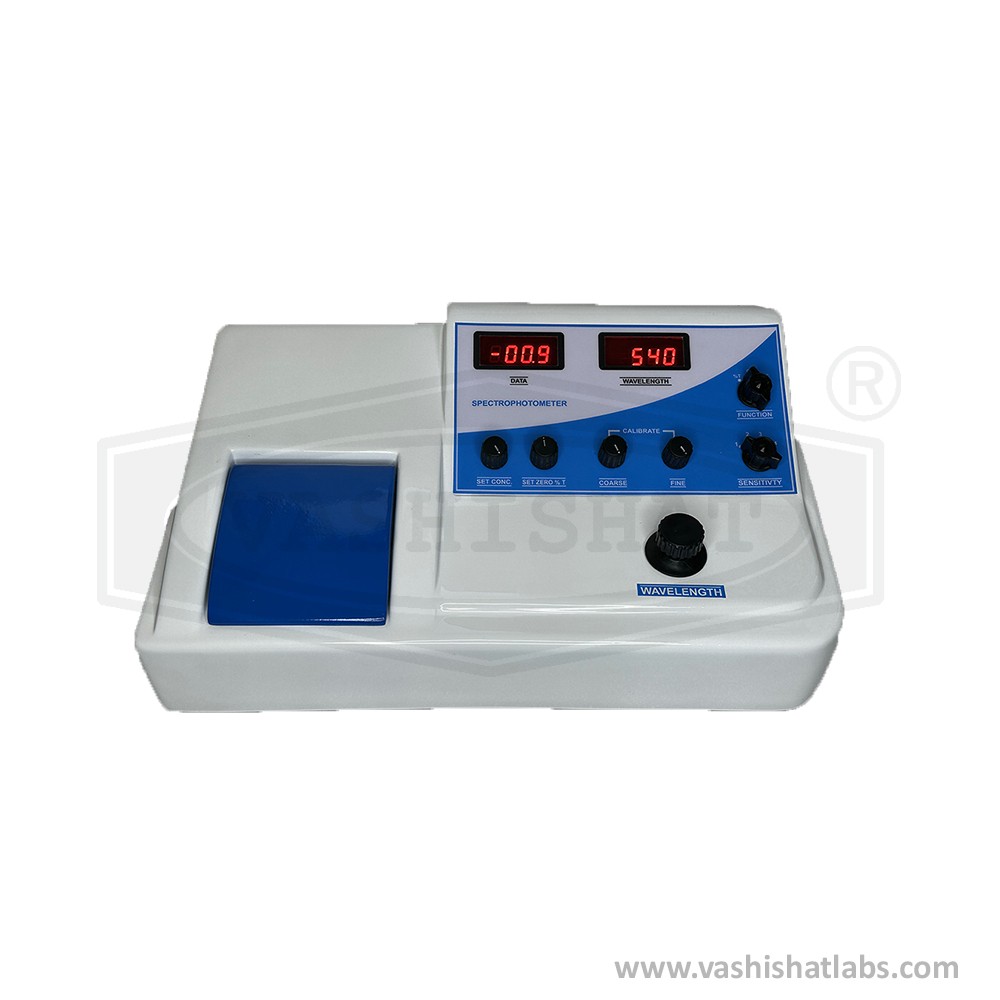

For Spectrophotometer Analysis Of A Solution Of Any Concentration, The Digital Spectrophotometer Is A Compact & Simple To Use Instrument.On the digital display, the output is shown as optical density (absorptance), percent transmission (% T), and concentration (C).
| Technical Specifications | |
|---|---|
| Range | 340 to 960nm |
| Resolution | 0.1% T : 0.001 Abs |
| Output | % T: 0 to 100% Abs.0 to 1.999 |
| Grating | 600 lines/nm |
| Light Source | 6v, 1 Amb . Vertical , Tungsten Halogen Lamp |
| Detector | Silicon Photodiode |
| Spectral Bandwidth | 10 nm |
| Wavelength Resolution | 5 nm./1nm |
| Sample System | 12mm dia clear glass, matched test tube |
| Display | 3.5 red LED |
| Power | 230V ± 10%, 50Hz,AC |
