Thermal Conductivity Of Guarded Hot Plate Method For AAC Blocks

Description
Scope of Supply
Document Attach

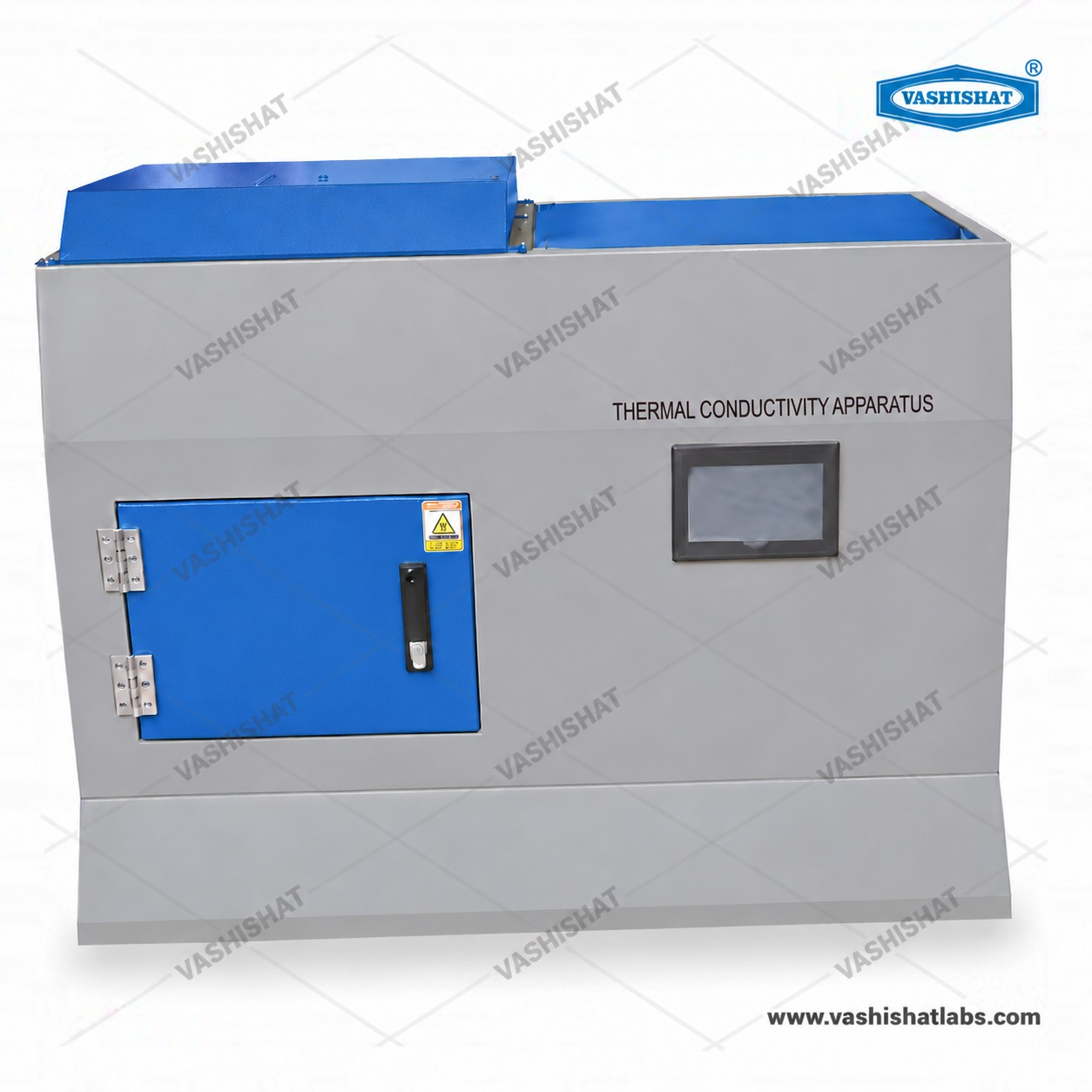

This Thermal Conductivity Apparatus is specifically designed to measure the thermal conductivities of insulating materials in slab form. The apparatus features a central heater sandwiched between two test specimens, with cooling plates on either side. A single, identical specimen is clamped securely between the heater and cooling plate. Additionally, a ring guard heater ensures unidirectional heat flow through the specimen, providing accurate and reliable results.

Sailent Features

Thermal conductivity test apparatus utilizing the guarded hot plate method, based on the steady-state method
Capable of measuring test samples up to 30 cm x 30 cm in size and 5-10 cm in thickness
Designed according to Indian Standard (IS: 3346-1966)
Durable mild steel external body with attractive powder coating
Specimen is placed in a chamber, sandwiched between two heat flux sensors as per ASTM C177 guidelines
Equipped with 10 thermocouples (5 on each side) for precise temperature measurement and guard heaters
Efficient cooling system with in-built refrigeration (CFC-free, Emerson/Kirloskar make or equivalent)
7” touch screen HMI and PLC operation for easy control
Linear actuator for height adjustment and sample dimension input for automatic K-value calculation
Direct reading of K-value in W/mK, no further calculation required
High-temperature insulation with 8 mm thick fiberglass box and glass wool bag
Complete panel-mounted electrical controls and measurement, all control accessories are with in reach.
Suitable for industrial applications such as thermal conductivity measurement of AAC Blocks
Operation on 230 Volts, 50 Hz, AC Supply
